CPU Infrared SMD Rework Station 220V With Hot Air Heating For IC Removing

Name: CPU Infrared SMD Rework Station 220V With Hot Air Heating For IC Removing
Brand: WISDOMSHOW
Price: 980.00 USD

China CPU Infrared SMD Rework Station 220V With Hot Air Heating For IC Removing wholesale

Place of Origin : Guangdong, China

Brand Name : WISDOMSHOW

Certification : CE

Packaging Details : icloud remove machine
wds520 is packed by Wooden Box

Price : $980.00/Sets

Condition : New

Machine Type : Welding Positioner

Applicable Industries : Machinery Repair Shops, Manufacturing Plant, Retail, Construction works , Energy & Mining

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Hot Product 2019

Warranty of core components : 1 Year

Core Components : Infrared preheating board

Warranty : 1 Year

Key Selling Points : Infrared preheating

Weight (KG) : 35

Voltage : 220/110V

Current : 50/60hz

Rated Capacity : N

Rated Duty Cycle : N

Dimensions : L460mm*W480mm*H500mm

Usage : mobile phone/laptop BGA/IC rework and repair

Electrical Material : Touch screen+Temperature control module+microcontrollers

Total Power : 3800W

PCB size : Max 300mm*280mm Min 10mm*10mm

BGA Chip Size : Max 60mm*60mm Min 1mm*1mm

Power : Ac220v ±10%,50hz

Heater power : Upper temp.one 800w,second temp.zone1200w,IR temp.zone 1800w

PCB thickness : 0.3-5mm

Weight : 20KG

position way : V-shape card slot +universal jigs

operation type : manual

After Warranty Service : Video technical support, Online support

Local Service Location : None

After-sales Service Provided : Video technical support, Online support

Contact Now

bga cpu reballing station WDS-520 with hot air heating for IPhone icloud remove machine new ps4 xbox IC chip soldering

Product Description

CPU Infrared SMD Rework Station 220V With Hot Air Heating For IC Removing

Our BGA Rework Station/ BGA reballing station :to replace and repair the BGA chip in laptop, mobile phone.
The main user : repairing shops and factory to provide the after-sales service and rework.

Product Paramenters

Power supply	AC 220V±10％ 50Hz
Total power	3800W
Heater power	Upper temp.zone 800W,second temp.zone 1200W,IR temp.zone 1800W(1200W controlled)
Electrical material	Touch screen+Temperature control module+microcontrollers
Locating way	V-shape card slot+Universal jigs
PCB size	Max 300mm280mm Min 10mm10mm
Applicable chips	Max 60mm60mm Min 1mm1mm
PCB thickness	0.3-5mm
Overall dimension	L460mmW480mmH500mm
Weight of machine	20KG
Usage	Repair chips / phone motherboard etc.

Manual BGA Rework Station

Model:WDS-520

♦ Repair Success Rate:More Than 99%
♦ Using The Industrial Touch Screen
♦ Independent 3 Heating Zones, Hot Air Heating/ Infrared Preheat. (temperature accuracy ± 2℃)
♦ With CE Certification

Main Features

Operation System

♦ Manual mode.

♦ solder, desolder, mount, pick and replace chip.

♦ User-friendly.

Strict Temperature Control System

♦ 8 segments rising temperature/constant time / temperature rising slope, it can save hundreds of groups temperature curve.

♦ It adopts high accuracy K-type thermocouple close-loop control.

♦ The external sensor can detect temperature precisely, analyze and calibrate the real temperature curve accurately at any time.

Safety System

♦ With CE certification.

♦ With automatic power-off protection device when abnormal accident happens and double over-temp protection function.

How to separate BGA chip from motherboard?
How to replace a new BGA chip?

Repair steps:
1) Separate the BGA chip from motherboard –we called desoldering
2) Clean Pad
3) Reballing or replace a new BGA chip directly
4) Alignment/Positioning – Depend on experience ,silk frame ,optical camera
5) replace a new BGA chip - we called Soldering

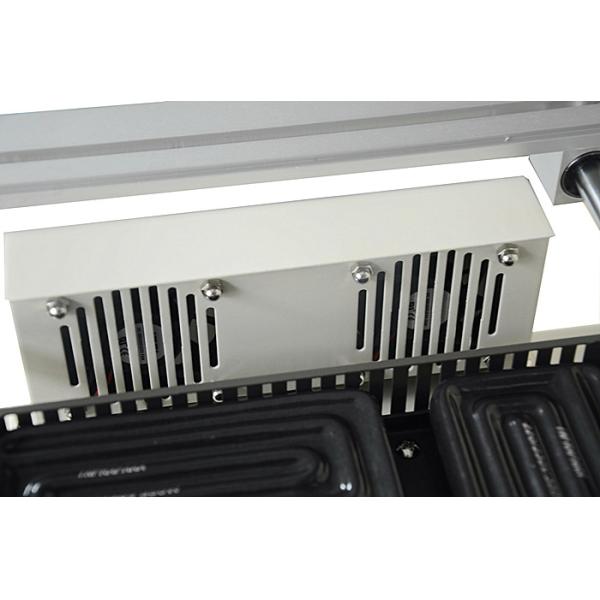

Detailed Images

Packing&Shipping

1.Standard Export Wooden cases
2.Delivery in 5 workdays after payment confirm;
3.Shipping by TNT,DHL,FEDEX , or by air or by sea
4.Loading port: Shenzhen or Hongkong.

Company Introduction

Shenzhen Wisdomshow Technology Co., LTD.
Professional BGA Rework Station Manufacturer

1. Following the business philosophy of "professional, integrity, excellence, customer first";
2. One of the leading manufacturers of BGA rework stations;
3. Over 10 years' experience in the BGA rework industry;
4. All models have passed the CE Certificate and ISO;
5. 100% QC inspection before shipment;
6. Customized brand logo is acceptable;
7. Owning a large market share in the world;

Our Services & Advantages

Contact:24 hours technical support by email or calling

Warranty:one year free,but all the other relative cost should be on the buyer's account
Technology Support : Provide Demo operation video for training ;If you have time,welcome to our company,we will arrange engineers to show you the operation
Service:Friendly English User manual provided; Good and professional after-sales service
Price:Give great discount to AGENCY to ensure agents profit
